OfficeScan

OfficeScan – endpoint protection

Trend Micro™ OfficeScan™ with technology XGen™ Endpoint Security supplements a set of methods of protection from threats with the capabilities of high-precision machine learning, which allows you to close the gaps in the safety of each user and each device. This solution constantly learns, adapts and automatically exchanges threat information with other systems in your environment. This combination of threat protection technologies is provided in an architecture that uses finite resources more efficiently both per CPU and in terms of network load.

♦Protection of file servers, PCs and Macs, laptops, sales outlets, ATM and virtual dextopes.

♦Protection from threats due to high-precision machine learning, behavioral analysis, file reputation, blocking of variants of known malicious code, web protection, protection from exploits, etc..

♦Protection against data loss and theft

♦Real-time updates with sandbox integration

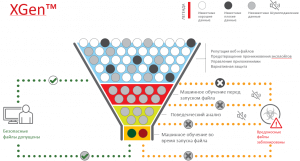

Maximum security XGen™

High-precision machine learning and other detection methods for broader protection against extortion programs and advanced attacks.

⇒Filter out threats using the most effective technique: maximum protection without false positives.

⇒Synthesis of technologies without signatures, including high-precision machine learning, behavioral analysis, variant protection, user behavior checking, application control, vulnerability prevention, validation of good files with other methods, such as file reputation, web reputation, and blocking of command and control.

⇒Trend Micro was the first to implement high-quality machine learning in its approach by unique analysis of files, not only before their execution, but also in the process for more accurate detection, noise reduction, white document verification at each level, which reduces the number of false positives.

⇒Instantly exchange information about suspicious network activity and files with other security layers to prevent subsequent attacks.

⇒Enhanced protection against extortion programs that monitors suspicious actions of file encryption in the end device, stops unauthorized actions and even if necessary recovers lost files.

Minimum recommended system requirements for the server

OS OfficeScan Server:

  • ∗Windows Server 2008 (SP2) и 2008 R2 (SP2) (x64)
  • ∗Windows Storage Server 2008 (x86/x64) и Storage Server 2008 R2 SP1 (x64)
  • ∗Windows HPC Server 2008 и HPC Server 2008 R2 (x64)
  • ∗Windows MultiPoint Server 2010 (x64) и 2012 (x64)
  • ∗Windows Server 2012 и 2012 R2 (x64)
  • ∗Windows MultiPoint Server 2012 (x64)
  • ∗Windows Storage Server 2012 (x64)
  • ∗Windows Server 2016 (x64)

Server platform OfficeScan:

  • ∗Processor: 1.86 GHz Intel Core 2 Duo (2 cores) or better
    ∗Memory: At least 1 GB (2 GB recommended), 500 MB only for OfficeScan (Windows 2008 family), at least 2 GB and at least 500 MB for OfficeScan only (Windows 2010/2011/2012/2016 family): At least 6 , 5 GB, 7 GB (remote installation)

Server platform OfficeScan Edge Relay:

  • ∗Processor: 2 GHz Intel Core 2 Duo (2 cores) or better
  • ∗Memory: at least 4 GB
  • ∗Hard disk capacity: at least 50 GB
  • ∗Operating system: Windows Server 2012 R2
  • ∗Network Card:

Two network cards are connected

◊ One for connecting to an internal network, one for connecting to OfficeScan Server

◊ One for connecting to an external network, to OfficeScan agents

One network card configuration for different internal and external network ports.

Database:

◊ SQL Server 2008 R2 Express (or later)

◊ SQL Server 2008 R2 (or later)

Minimum recommended system requirements for the agent

Agent Operating System:

  • ∗Windows XP (SP3) (x86)
  • ∗Windows XP (SP2) (x64) (Professional)
  • ∗Windows Vista (SP1/SP2) (x86/x64)
  • ∗Windows 7 (with or without Service Pack 1) (x86/x64) Editions
  • ∗Windows 8 и 8.1 (x86/x64)
  • ∗Windows 10 (32- and 64-bit)
  • ∗Windows 10 with embedded IoT
  • ∗Windows Server 2003 (with Service Pack 2 (SP2)) and 2003 R2 (x86/x64)
  • ∗Windows Compute Cluster Server 2003 (active / passive)
  • ∗Windows Storage Server 2003 (SP2), Storage Server 2003 R2 (SP2) (x86/x64)
  • ∗Windows Server 2008 (SP2) (x86/x64) и 2008 R2 (SP1) (x64)
  • ∗Windows Storage Server 2008 (SP2) (x86/x64) и Storage Server 2008 R2 (x64)
  • ∗Windows HPC Server 2008 и HPC Server 2008 R2 (x86/x64)
  • ∗Windows Server 2008/2008 R2 Failover Clusters (active / passive)
  • ∗Windows MultiPoint Server 2010 и 2011 (x64)
  • ∗Windows Server 2012 и 2012 R2 (x64)
  • ∗Windows Storage Server 2012 и 2012 R2 (x64)
  • ∗Windows MultiPoint Server 2012 (x64)
  • ∗Windows Server 2012 Failover Clusters (x64)
  • ∗Windows Server 2016 (x64)
  • ∗Windows XP Embedded Standard (SP1/SP2/SP3) (x86)
  • ∗Windows Embedded Standard 2009 (x86)
  • ∗Windows Embedded POSReady 2009 (x86), Embedded POSReady 7 (x86/x64)
  • ∗Windows 7 Embedded (x86/x64) (SP1)
  • ∗Windows 8 и 8.1 Embedded (x86/x64)

Agent platform:

  • ∗Processor: 300 MHz Intel Pentium or similar (family Windows XP, 2003, 7, 8, 8.1, 10)
    • ◊At least 1.0 GHz (2.0 GHz recommended) Intel Pentium or similar (family Windows Vista, Windows Embedded POS, Windows 2008 (x86))
    • ◊At least 1.4 GHz (2.0 GHz recommended) Intel Pentium or similar (family Windows 2008 (x64), Windows 2016)
    •
  • ∗Memory: At least 256 MB (512 MB recommended) plus at least 100 MB exclusively for OfficeScan (family Windows XP, 2003, Windows Embedded POSready 2009)
    • ◊At least 512 MB (2.0 GB recommended) plus at least 100 MB exclusively for OfficeScan (family Windows 2008, 2010, 2011, 2012)
    • ◊At least 1.0 GB (1.5 GB recommended) plus at least 100 MB exclusive for OfficeScan (family Windows Vista)
    • ◊At least 1.0 GB (2.0 GB recommended) plus at least 100 MB exclusively for OfficeScan (family Windows 7 (x86), 8 (x86), 8.1 (x86), Windows Embedded POSReady 7)
    • ◊At least 1.5 GB (2.0 GB recommended) plus at least 100 MB exclusively for OfficeScan (family Windows 7 (x64), 8 (x64), 8.1 (x64))
    •
  • ∗Hard disk capacity: at least 650 MB
  •
